Part Number: MX25L3206E
Function: 32M-BIT [x 1 / x 2] CMOS SERIAL FLASH
Manufacturer: Macronix International

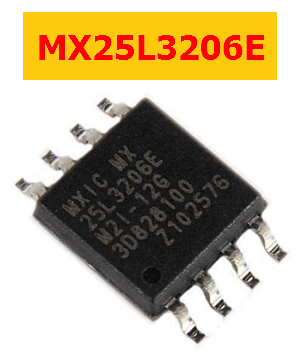

Image :
Description
The MX25L3206E feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input. When it is in Dual Output read mode, the SI and SO pins become SIO0 and SIO1 pins for data output.
Pinout
Features
1. Single Power Supply Operation
– 2.7 to 3.6 volt for read, erase, and program operations
2. Serial Peripheral Interface compatible — Mode 0 and Mode 3
3. 33,554,432 x 1 bit structure or 16,777,216 x 2 bits (Dual Output mode) structure
4. 1024 Equal Sectors with 4K byte each
– Any Sector can be erased individually
5. 64 Equal Blocks with 64K byte each
– Any Block can be erased individually
6. Program Capability
– Byte base
– Page base (256 bytes)
7. Latch-up protected to 100mA from -1V to Vcc +1V
MX25L3206E Datasheet PDF Download
Other data sheets are available within the file: MX25L3206EMI-12G, MX25L3206EPI-12G, MX25L3206EZNI-12G
